Describe how the resistance changes with potential difference.

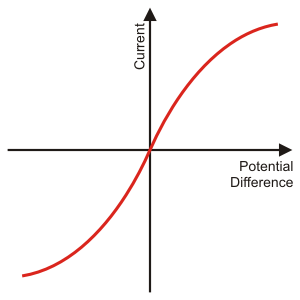

Filament lamp iv graph. As the potential difference across a filament lamp increases the current increases and the energy dissipated as heat increases resulting in a higher temperature. As the temperature increases resistance of the filament increases. What is the resistance when v 1 and v 3. As the potential difference increases so does the temperature of the thin wire inside the bulb the filament.

As the temperature increases. It contains a thin coil of wire called the filament. Learn about the graph for a resistor a diode a filament lamp a thermistor and an ldr. This increase in the filament s temperature also increases the resistance of the filament.

Voltage current graph. You can show that the resistance has changed by reading values of current and voltage from the graph. However as the current through the filament increases the heating effect caused in the lamp also increases and so the temperature of the filament rises. This heats up when an electric current passes through it and produces light as a result.

Initially with positive potential differences the current is directly proportional to the p d. A filament lamp is a common type of light bulb. From the i v graph the ratio v i increases as current increases. Resistance of the filament lamp increase with temperature.

The resistance of the lamp at a particular potential difference potential difference current. This results in the following graph. As the potential difference across a filament lamp increases the current increases and the energy dissipated as heat increases resulting in a higher temperature. Resistance of the filament lamp increase with temperature.

The resistance of a lamp s filament the long thin coiled wire increases dramatically as the current increases. Remember that we can calculate resistance r by using r v i. For a filament lamp however the temperature of the filament is most definitely not constant it must to get hot in order to give out light. Use the graph to calculate the resistance of the lamp at a number of different potential differences.

From the i v graph the ratio v i increases as current increases.
